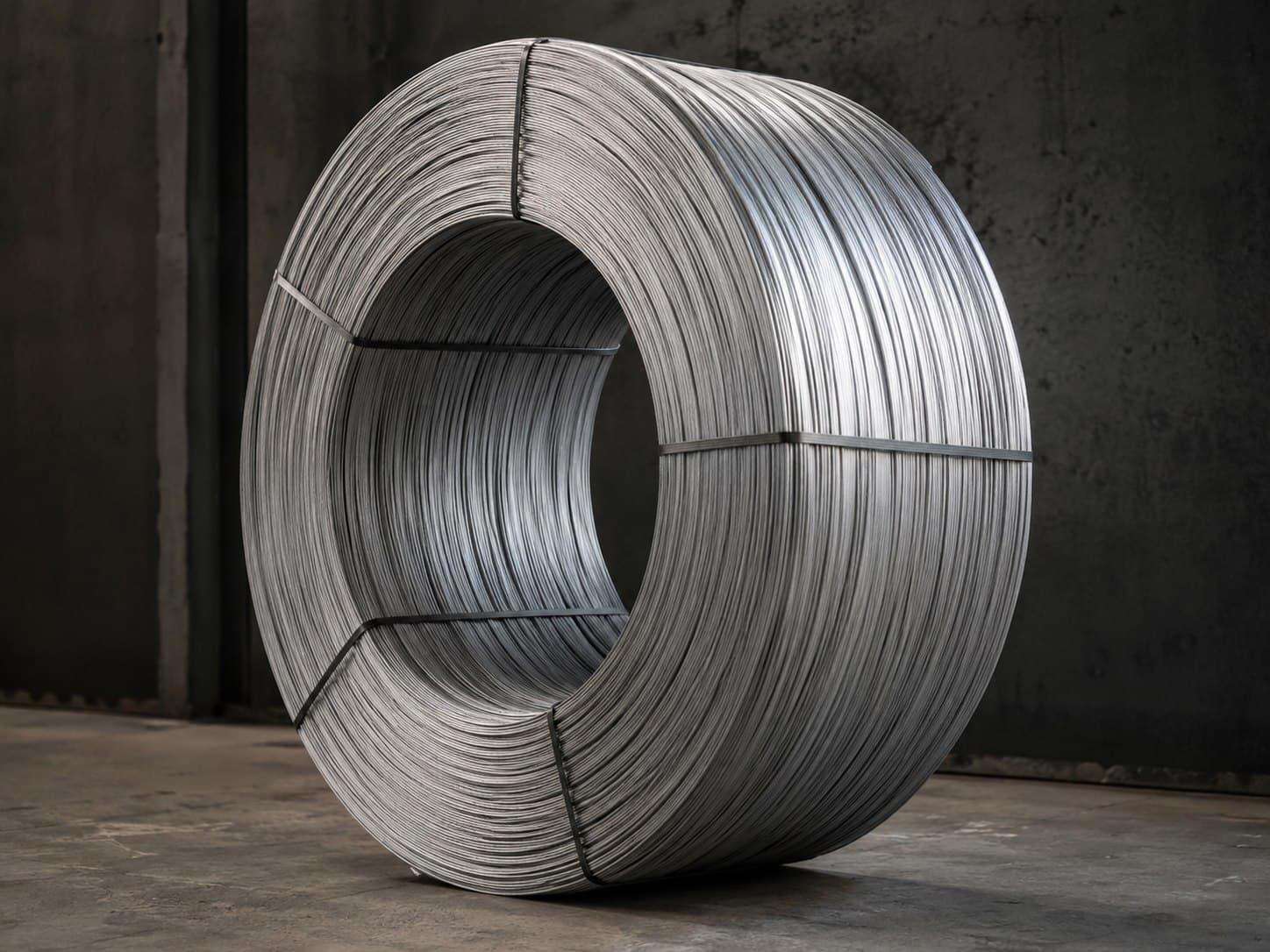

Aluminium Wire Rod
Aluminium Wire Rod — EC 1370
Higher-purity EC 1370 conductor rod for greater conductivity.
Ø 9.5 · 12 mm
- Grade
- EC 1370
- Conductivity
- ≥ 61.8% IACS
- Tempers
- H12 · H14 · H16 · H19 (drawn wire)
- Tensile strength
- ≈ 165–205 MPa (H19)
| Element | Si | Fe | Cu | Mn | Cr | Zn | B | Ga | V+Ti |
|---|---|---|---|---|---|---|---|---|---|
| Limit | 0.10 | 0.25 | 0.02 | 0.01 | 0.01 | 0.04 | 0.02 | 0.03 | 0.02 |
| Element | Limit |
|---|---|
| Si | 0.10 |
| Fe | 0.25 |
| Cu | 0.02 |
| Mn | 0.01 |
| Cr | 0.01 |
| Zn | 0.04 |
| B | 0.02 |
| Ga | 0.03 |
| V+Ti | 0.02 |
Values per ASTM B233. Composition is spectrometer-certified per order.
Applications
Drawing of high-conductivity cable, conductors and busbar.
